Coyote Billet Oil Pump Gears & Crank Sprocket for Mustang 2011-15, 2015-23, 2024+ 5.0L

Manufactured by Boundary Pumps

If you are intending on adding forced induction or are pushing your Mustang's engine to the limit, then upgrading your Oil Pump Gears and Crank Sprocket is an essential recommend upgrade.

As the factory components are known to be the next weakest link and can fail under extreme harmonics, strain and pressure that can result in catastrophic engine failure. Boundary Produce some of the best products on the market with various options available for providing safe and reliable performance giving you peace of mind that these components won't fail!

Boundary Billet Oil Pump Gears & Crank Sprockets are 100% manufactured at their Dallas, Texas production facility. With the Oil Pumps, they start by quenching their chromoly billets from extreme heat and then temper it to a tough indestructible core. After machining, we apply our ColdFlow surface hardening process and complete it to a Mirror Finish. What does all this give you? It gives you a pump with stability over 9000 RPM, proven over 2000whp, with higher efficiency, less friction, and backed by one of the industry’s best warranties.

Their Crank Sprockets start with a chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

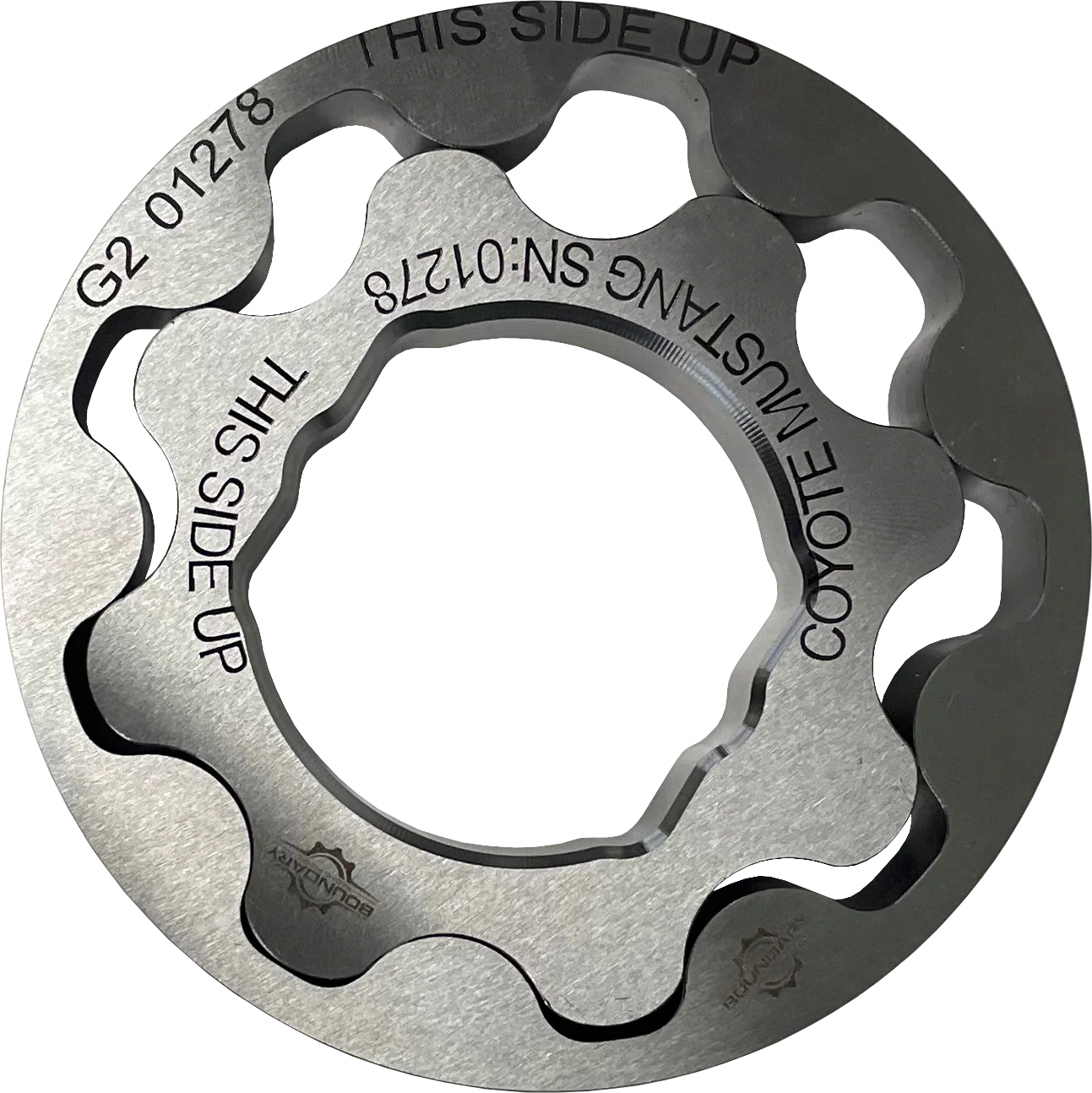

Oil Pump Features:

Mirror finished and surface hardened
Surface ground gears for the ultimate in fitment and performance
Indestructible chromoly core
Inner and outer gear machined in matched sets
Boundary's own race-inspired gerotor design for flow and strength
Each set hand, machine, and hardness inspected with Blueprinting Report

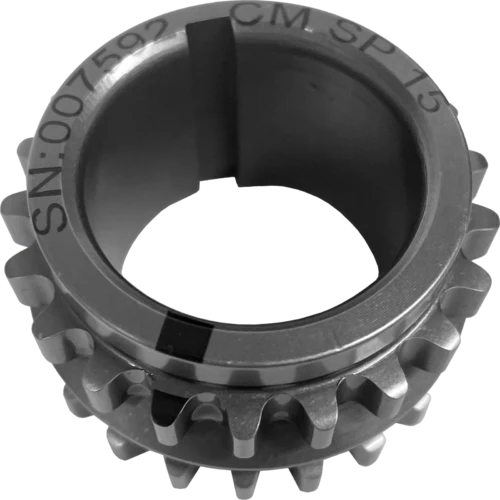

Crank Sprocket Features:

All sprockets heat treated to maximum hardness while maintaining toughness
Precision CNC machined and broached for snug accurate fit
Dimensions checked after machining and after heat treatment for guaranteed fit
80% more cross-section versus OEM at the keyway
Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest
Strongest sprocket on the market
High finish reduces friction and chain vibration
New tooth geometry strengthens teeth and keyway

Vehicle applications:

Ford Mustang S197 GT - 2011, 2012, 2013, 2014
Ford Mustang S550 GT, Bullitt & Mach 1 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Ford Mustang S650 GT & Dark Horse 2024+
