Hubcentric Black Wheel Spacers (Pair)
20mm (40mm Total Track Width)
for Ford Mustang 2015-23

Manufactured by Coyote | Part #5450-5450H-AA705-14

A set of Wheel Spacers will give your S550 Mustang a more intimidating and muscular stance.

CNC-Machined out of a solid block of billet aluminium for superior strength and durability, these Mustang wheel spacers will last a lifetime. These Billet Aluminum Wheel Spacers use a Hub-Centric design, meaning the centre of the wheel hub lines up exactly to the diameter of the axle hub, giving you a perfect secure fit.

These Billet Aluminum 20mm wheel spacers are designed to be used on all 2015-23 S550 Mustangs equipped with 5 lug 5x4.5" (5x114.3mm) factory or aftermarket wheels installed. Spacer lug nuts are included, but requires the use of original lug nuts for wheel installation.

Features:

• Hubcentric wheel spacers

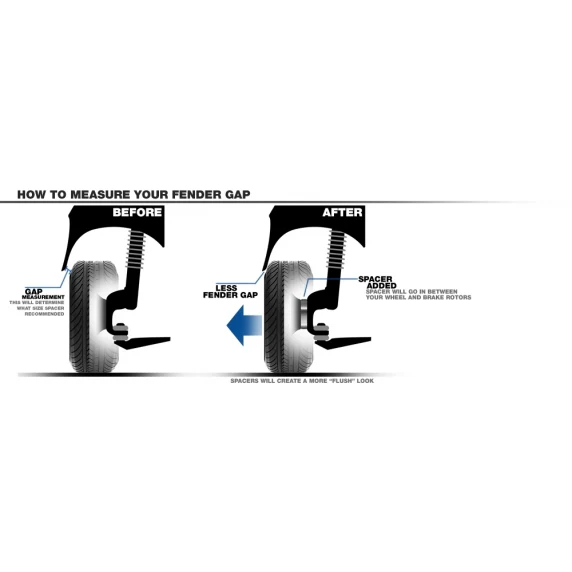

• Protects against tyre rubbing
• Billet aluminium construction
• Provides 20-millimeter offset
• Maintains 5 x 4.50-inch bolt pattern
• Sold as a pair
• Convenient installation

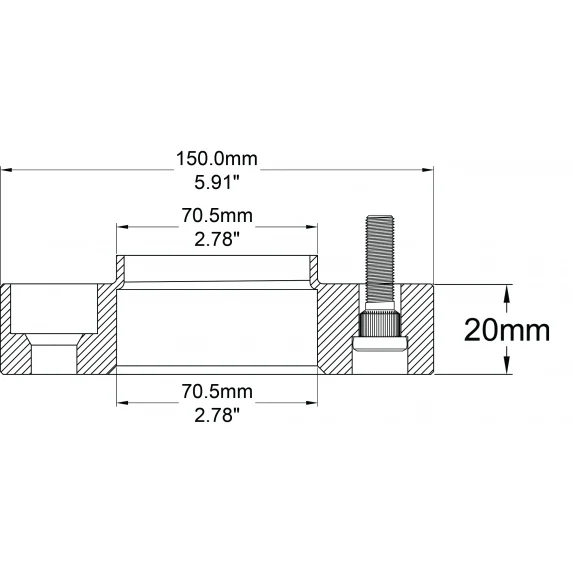

Specifications:

• Vehicle Thread: M14x1.5
• Hex: 19mm (3/4") Hex
• Vehicle Bolt Pattern: 5 x 114.3mm (5 x 4.50")
• Wheel Bolt Pattern: 5 x 114.3mm (5 x 4.50")
• Stud Thread: M14x1.5
• ID (Vehicle Side): 70.50mm
• OD (Wheel Side): 70.50mm
• Adapter Diameter: 150mm
• Material: 6061-T6 Aluminum
• Thickness: 20mm (per spacer)
• Finish: Black Anodised
• Included: OE Lug Bulge Acorn Lug Nuts
• Type: Single Drill - Hub Centric

Vehicle applications:

• Ford Mustang S550 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
• includes EcoBoost, GT, Shelby GT350/GT350R, Bullitt & Mach 1
  • Please Note: All MagneRide equipped Mustangs have longer front studs and will require trimming of these front studs for spacers to fit.
  • Please Note: Due to the 20mm depth of the spacers, depending on your wheel design and if it has pocketing on the back, trimming of the wheel studs may be required on any S550 model to fit these spacers at the front or rear.

Mustang S550 recommended setup with factory wheels:

On the S550 Mustang 5.0L models we recommend 25mm front and 20mm rear spacers. For the 2.3L models we recommend 25mm for both front and rear due to the EcoBoost coming from the factory with narrower factory rear wheels.
