Introducing the new Mustang 5.0 V8 all-aluminium high-performance radiators from CSF.

Specification

• 2-row, 42mm ultra-high performance radiator core by CSF.
• With CSF’s exclusive B-Tube technology and 6.5mm multi-louvered fin height for the most efficient radiator core available for the new Ford Mustang platform.
• 1 hour hand polished mirror-finish
• CNC machined mounting brackets
• True “drop-in-fit” with no modifications necessary

The upgraded all-aluminum CSF radiator w/ 42mm B-Tube core will counterbalance the stacking of an additional cooler in front of the main cooling system + maintain optimal temperatures in the high horsepower applications.

There are key features of the new CSF all-aluminum high-performance Mustang radiator. This includes CSF’s exclusive B-Tube technology that increases the heat transfer capabilities approximately 15% over regular tubes and multi-louvered fins to maximize airflow through the radiator core.

The unit is designed to be a true “drop-in-fit” with no modifications necessary.

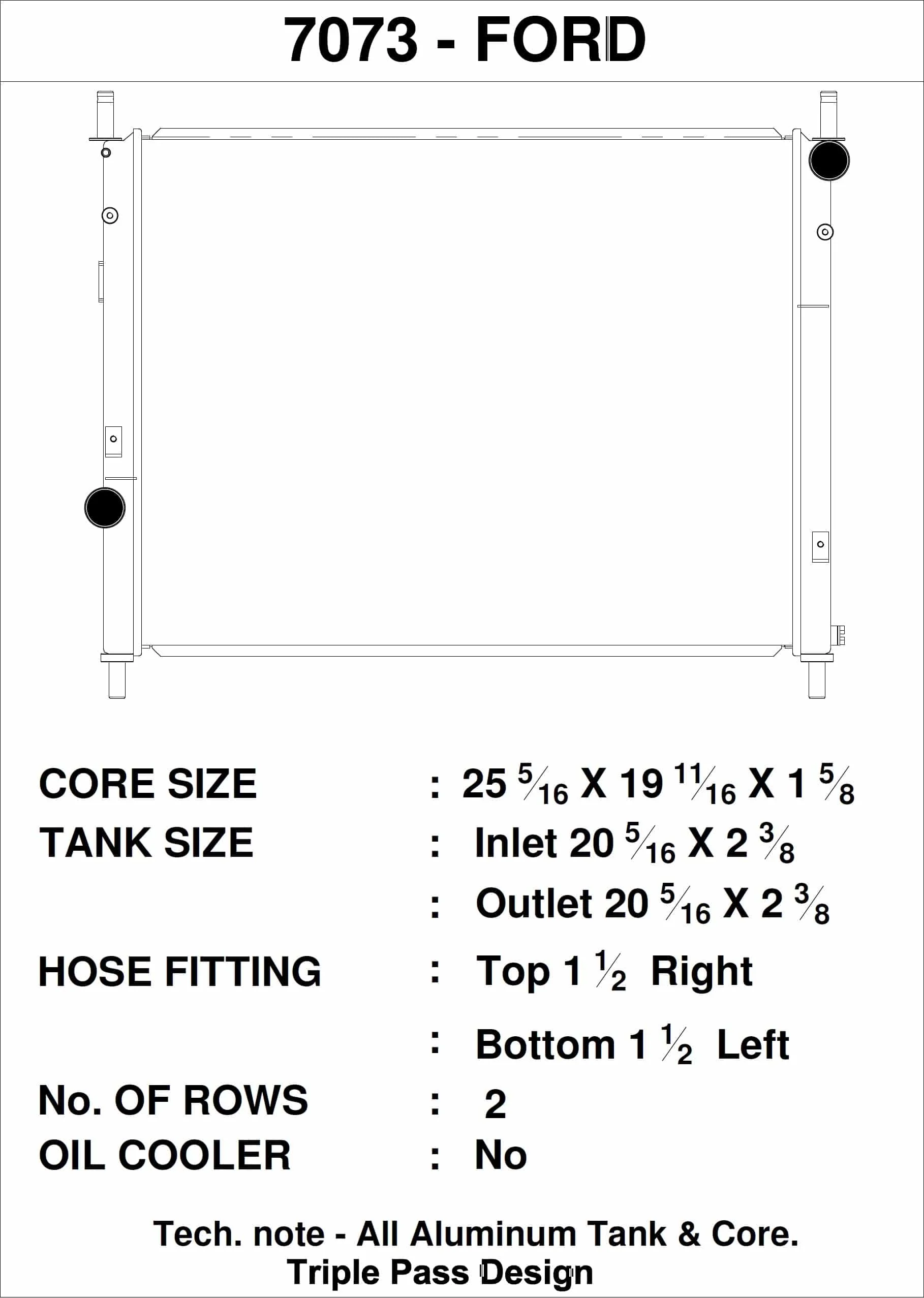

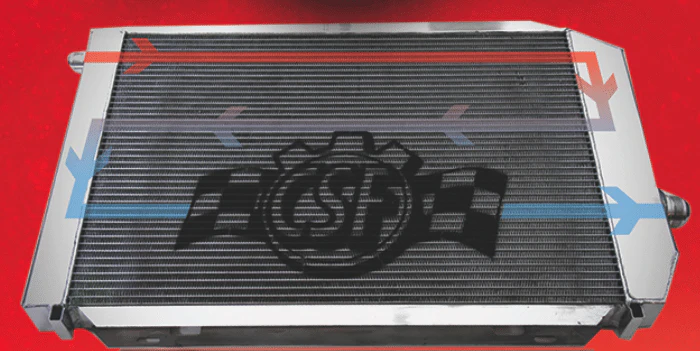

The GT Model (#7073) includes CSF’s triple-pass technology which allows the coolant to flow through the radiator core 3x rather than just flowing across the surface of the core once.

This allows much colder ambient air to exchange heat with the coolant for a 3x longer period of time generating the lowest outlet temperature possible. This radiator is future proof and will be needed when increasing power with supercharger and turbo kits.

Vehicle application

• Mustang 5.0L GT 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
