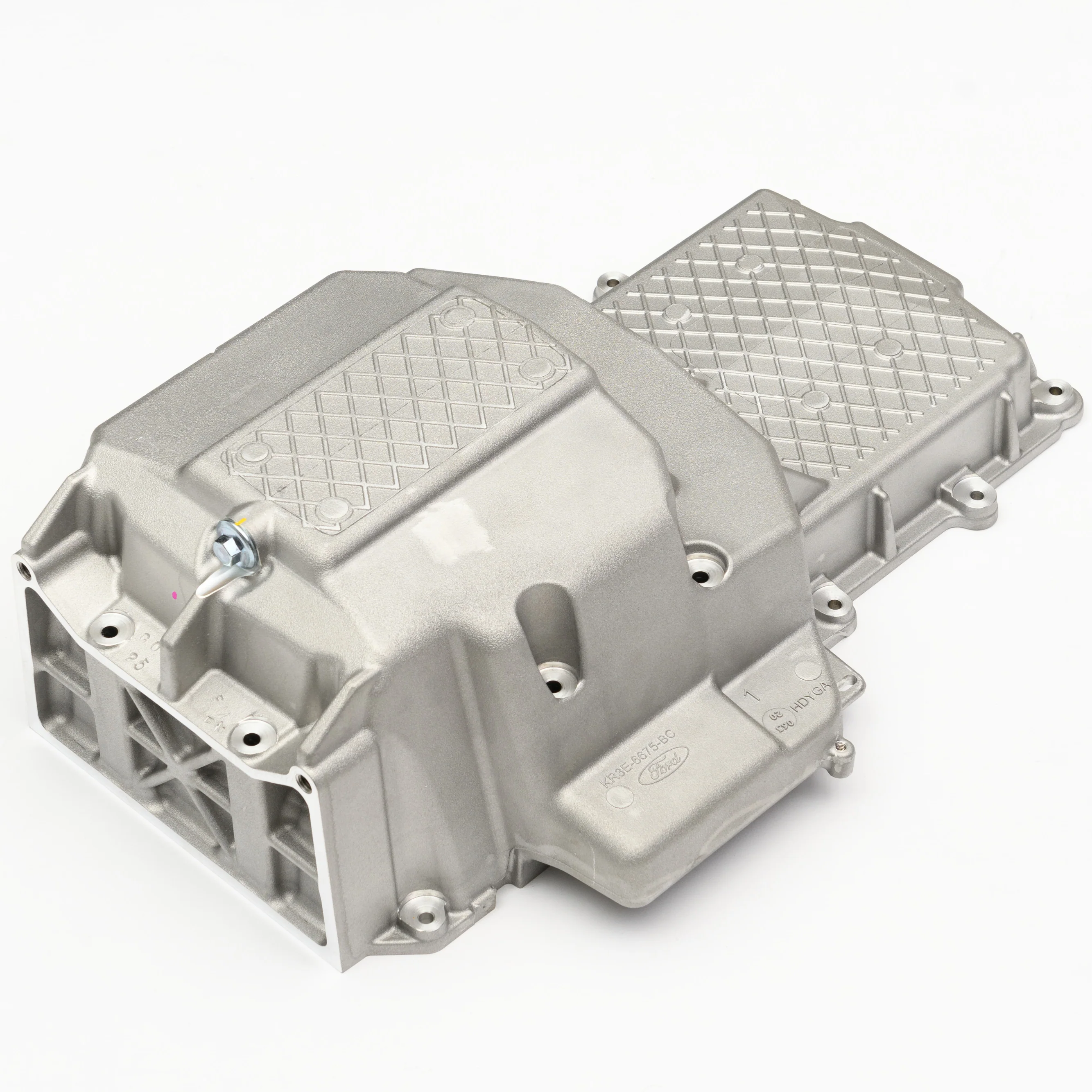

GT500 Aluminium Oil Pan & Pump Kit
For Mustang 2015-23

Manufactured by Ford Performance | #M-6675-M52S

Have you improved the handling of your Mustang for fast road and track using a grippy tyre? Then this oil pan is the perfect addition to helping protecting your engine!

This Factory replacement GT500 Oil Pan is designed for high-horsepower street cars, or track-focused builds as an OEM-Plus upgrade for your Mustang GT.

For forced induction or increasing RPM your RPM limit this kit includes a high-output oil pump that came in the 5.2L supercharged Predator engine. If you plan on going to the track or strip with your Mustang, the baffles and trap doors in this pan help keep the oil where your Mustang needs it to prevent oil starvation and protect your engine.

When accelerating fast, cornering hard, and braking hard the oil in the oil pan will move to one side and may not be picked up by the oil pickup tube. Over time, this increases wear on the engine and leads to internal engine damage. The baffles, windage tray, pickup tube, oil pan design, and more... work together in this kit to keep your engine lubricated correctly so that you can race with peace of mind.

Features:

• Fits all 5.2L and 5.0L Coyote engines

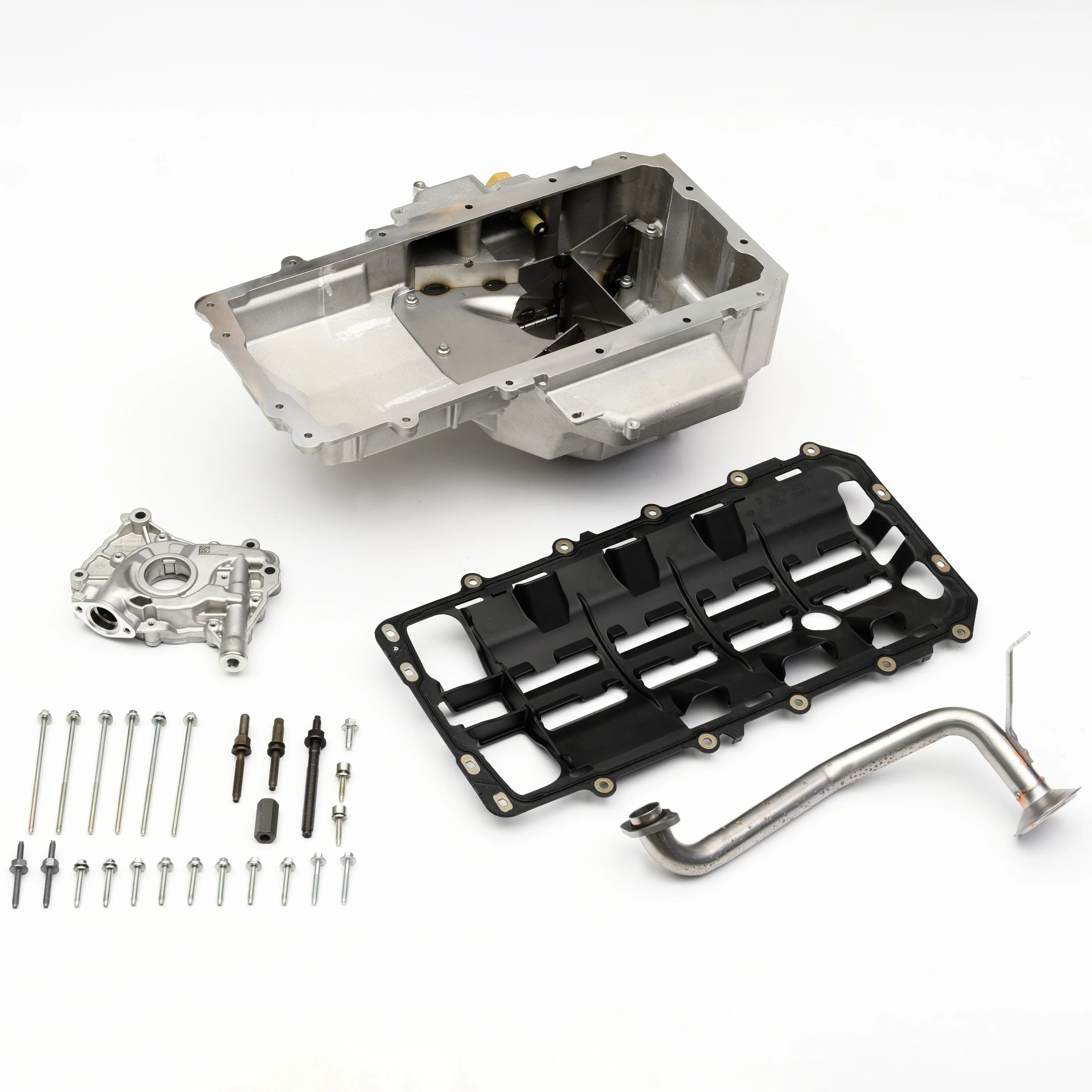

• Includes the production 2020 GT500 high output oil pump, pickup tube, oil pan, windage tray/gasket and necessary installation hardware

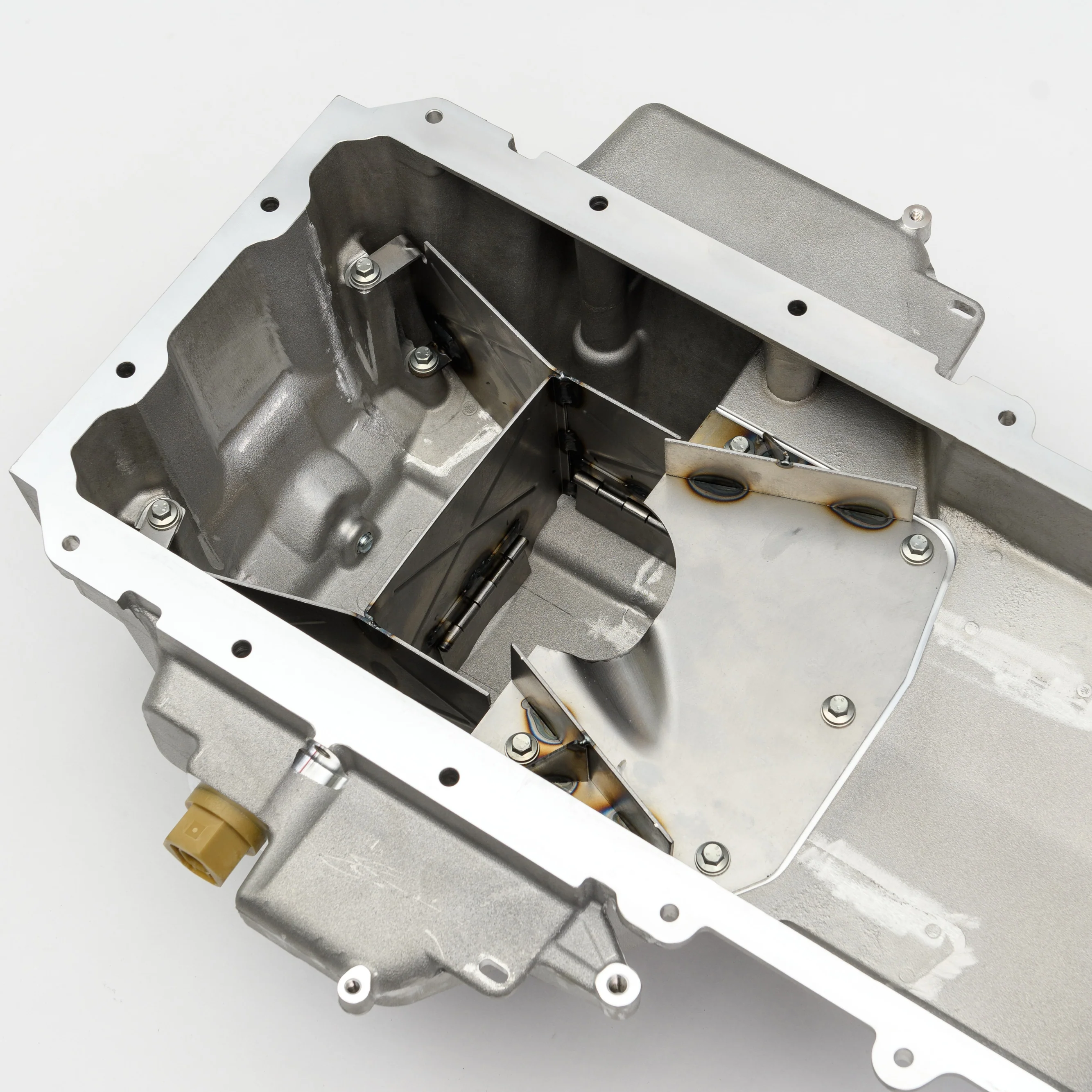

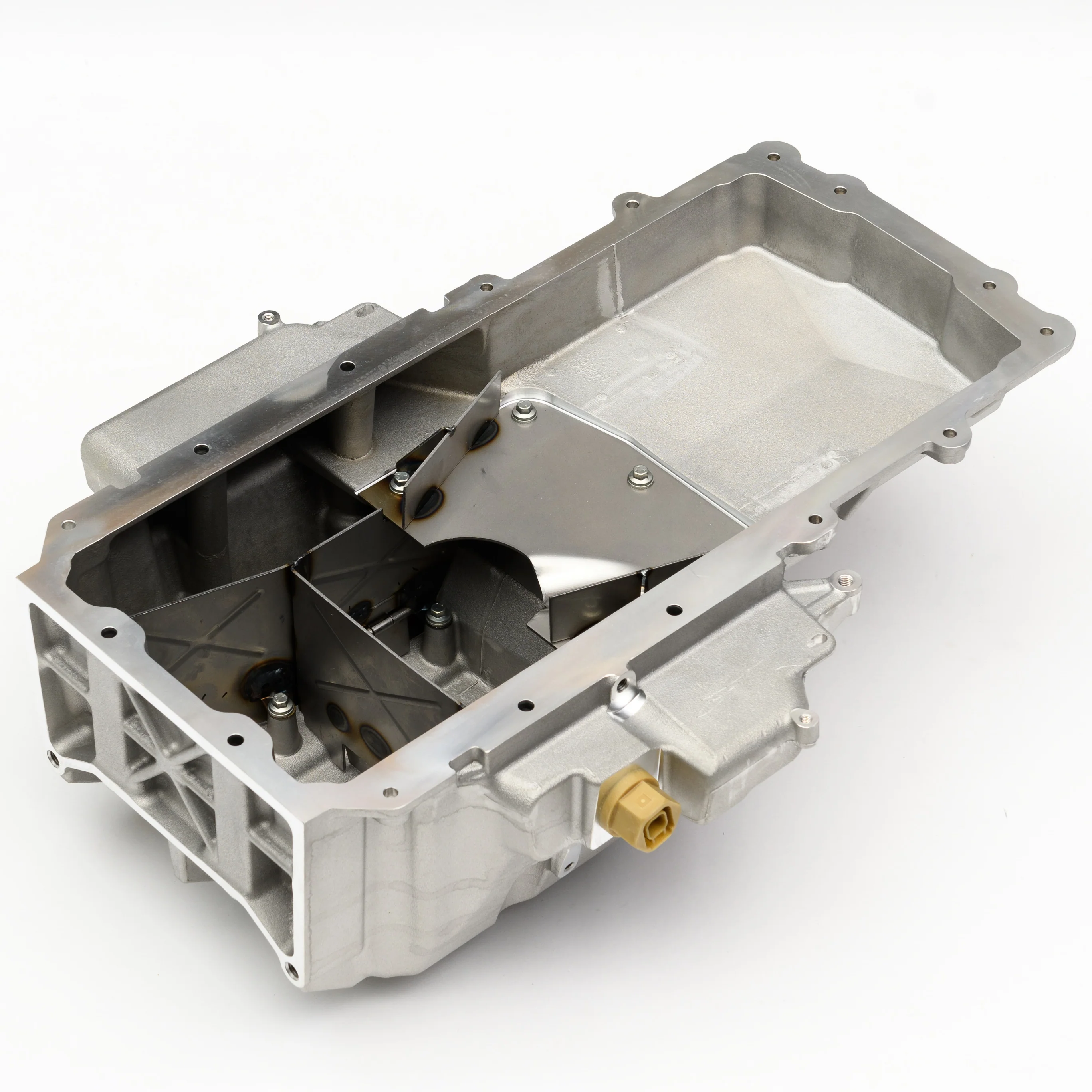

• This unique cast/machined oil pan features a FP350S race car inspired trap door baffle system to keep the pickup properly submersed during high G loads from cornering, braking, and acceleration

Please Note:

• Not validated for flat plane crank applications
• Not a straightforward fit on RHD Mustangs with Factory Oil Cooler set up. Requires removal of Engine Oil Take Off Plate & Remote Oil Cooler and Filter Relocation Kit. Please contact us for further details.
• Not a straight fit on Automatic Transmission Models (Modification Required to Pan and Line.)
• Long Tube Headers Applications may require modification (Sump wing foul on left side).

• Due to being a specialist part / application, this item is special order and supplied within 1-2 weeks providing stock is avaiable in the US. Once ordered and shipped from the US supplier the order cannot be cancelled and is non-returnable.

Vehicle Applications:

• Ford Mustang GT S550 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
