2-Point Chassis Brace for Front Subframe
for Ford Mustang 2015-23

Manufactured by BMR Suspension | Part #CB007

Increase steering stability and K-member rigidity on your S550 Mustang with a front Chassis Brace from BMR Suspension.

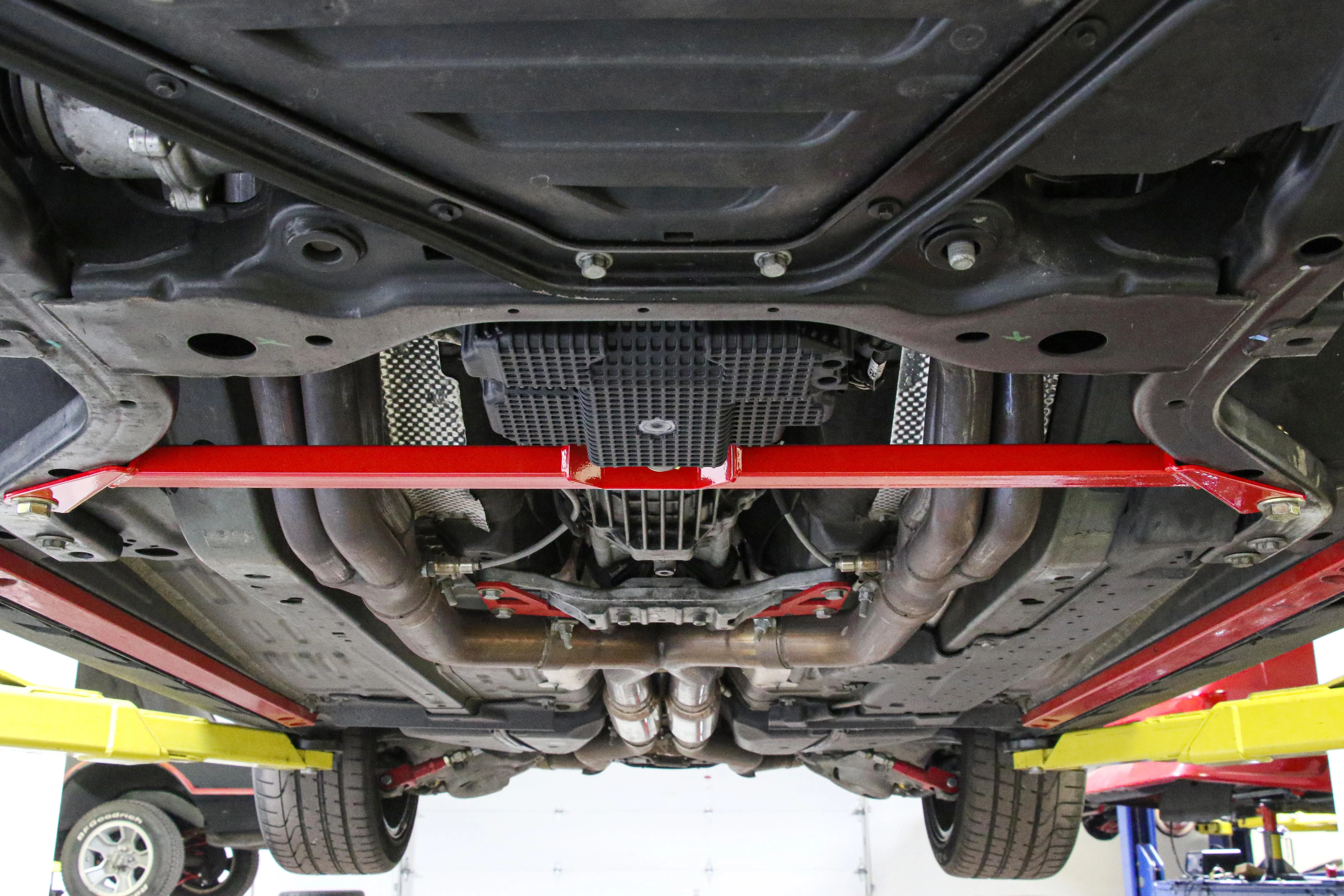

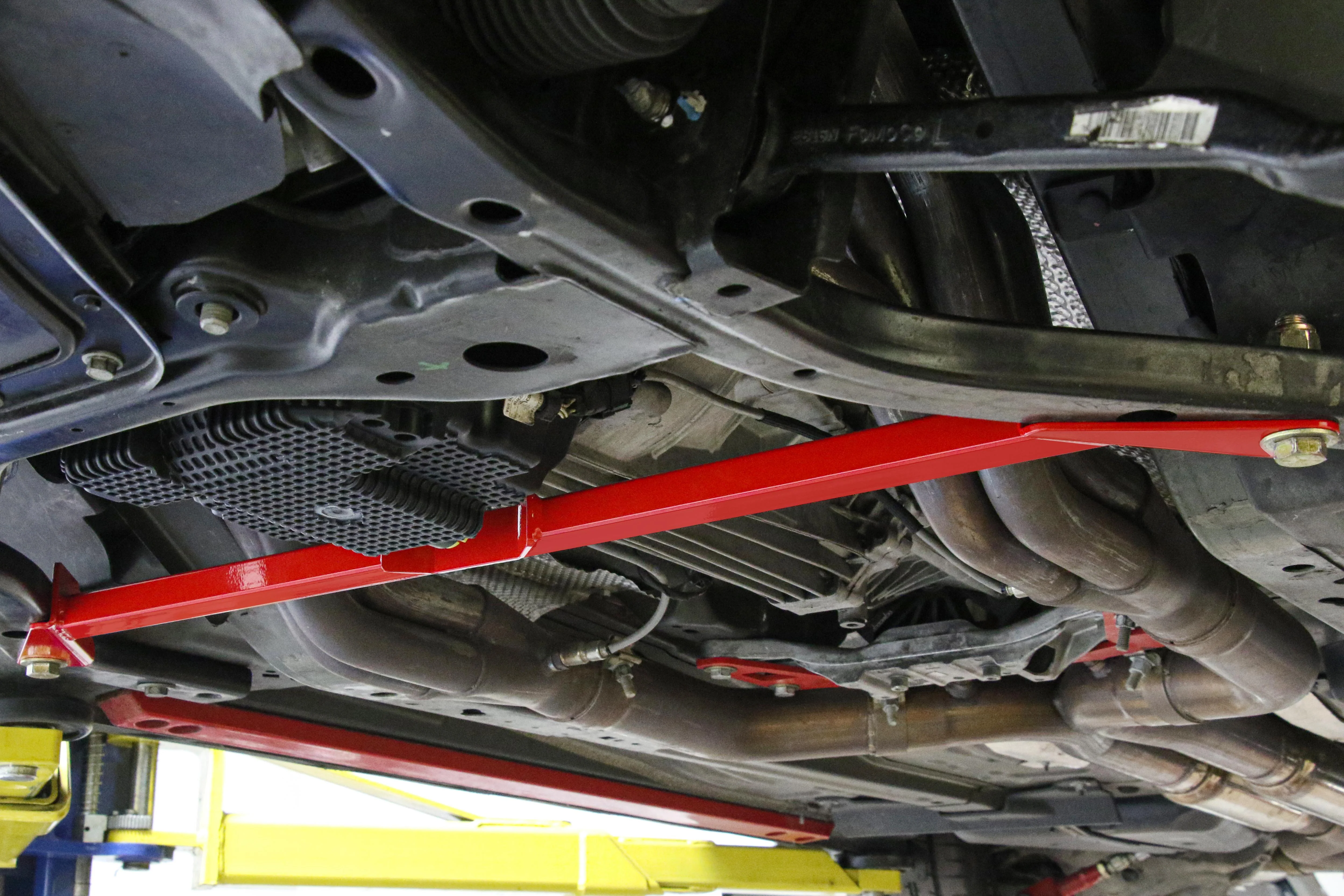

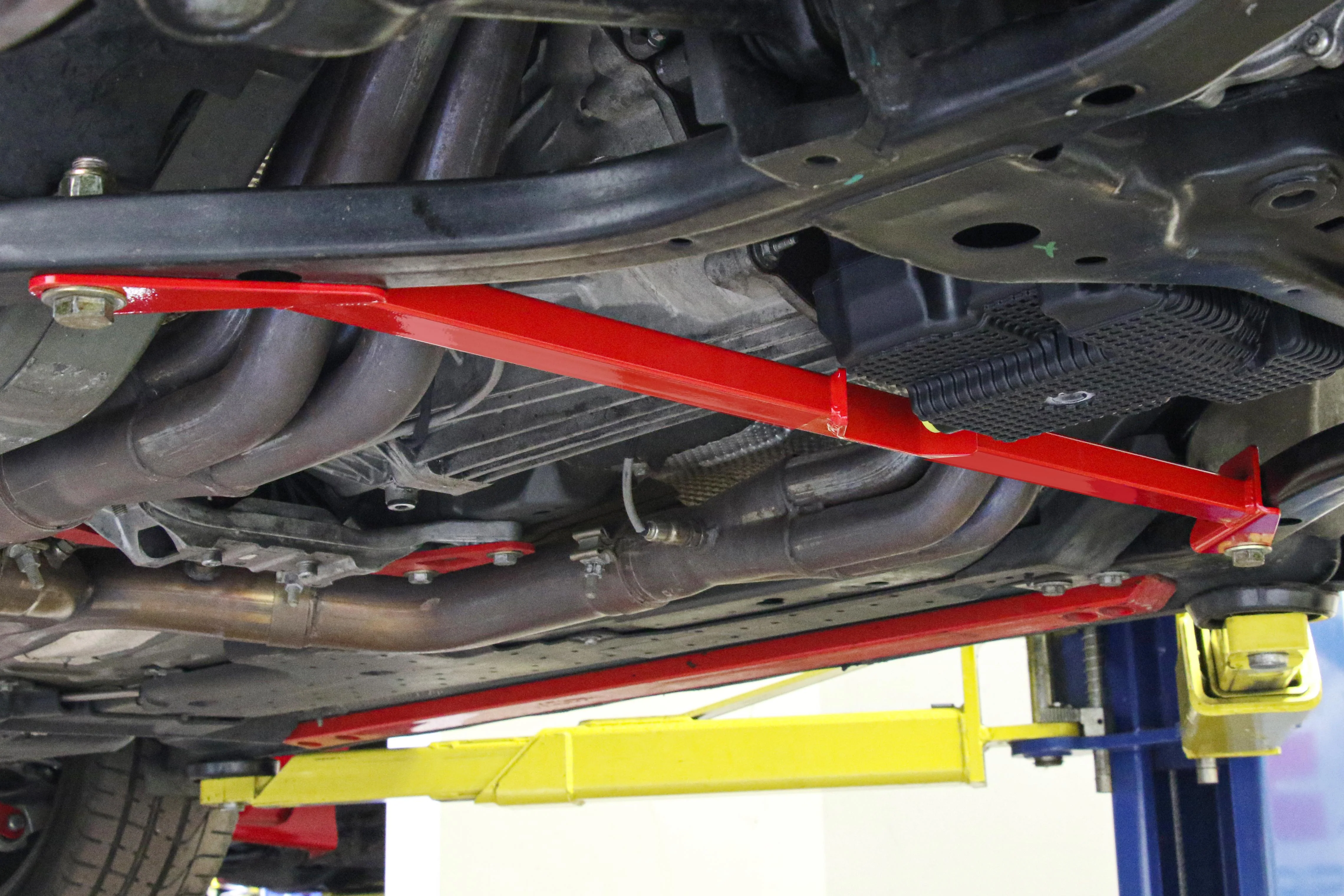

The factory K-member legs can deflect under hard braking and extreme lateral loading. Built from heavy-duty 1- by 1.5-inch rectangular tubing and CNC-formed, laser-cut 3/16-inch steel plate, BMR’s CB007 Chassis Brace is designed to support and stiffen the factory S550 K-member. This increases steering feel and stability during aggressive braking and manoeuvring. BMR’s CB007’s front Chassis Brace ties the rear legs of the K-member together, reinforcing this major area of the K-member. This effectively reduces deflection when fore, aft, and lateral loads are applied to the chassis.

BMR designed the CB007 front Chassis Brace for street performance, drag race, and handling applications. This 100% bolt-on kit use existing boltholes and supplied hardware, allowing for easy installation with simple hand tools. Once installed, the Chassis Brace minimises K-member deflection with no change in NVH. This brace reduces deflection, increasing steering feel and stability on both the street and track.

Features:

• 100% bolt-on design
• No fabrication needed
• Installs with simple hand tools

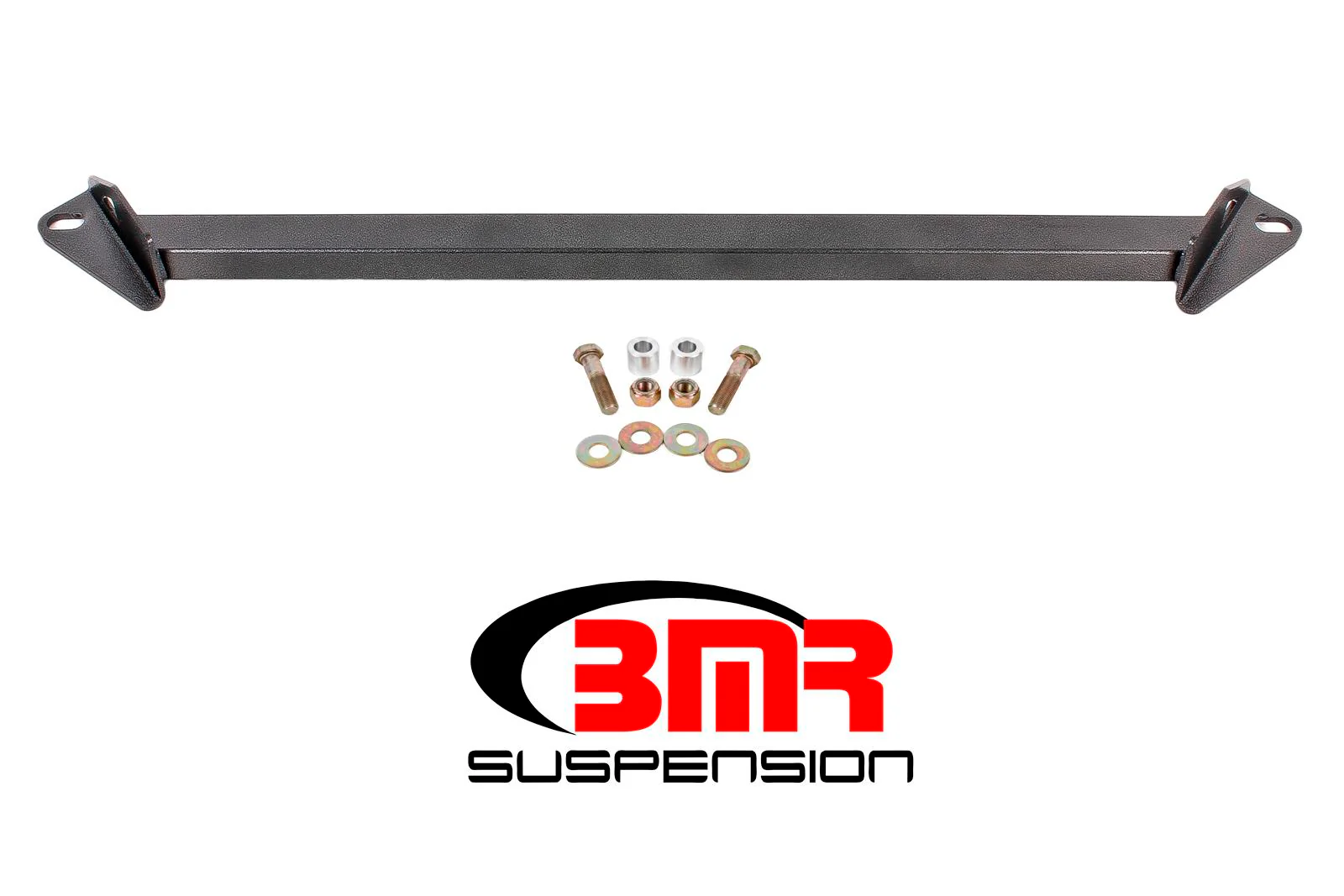

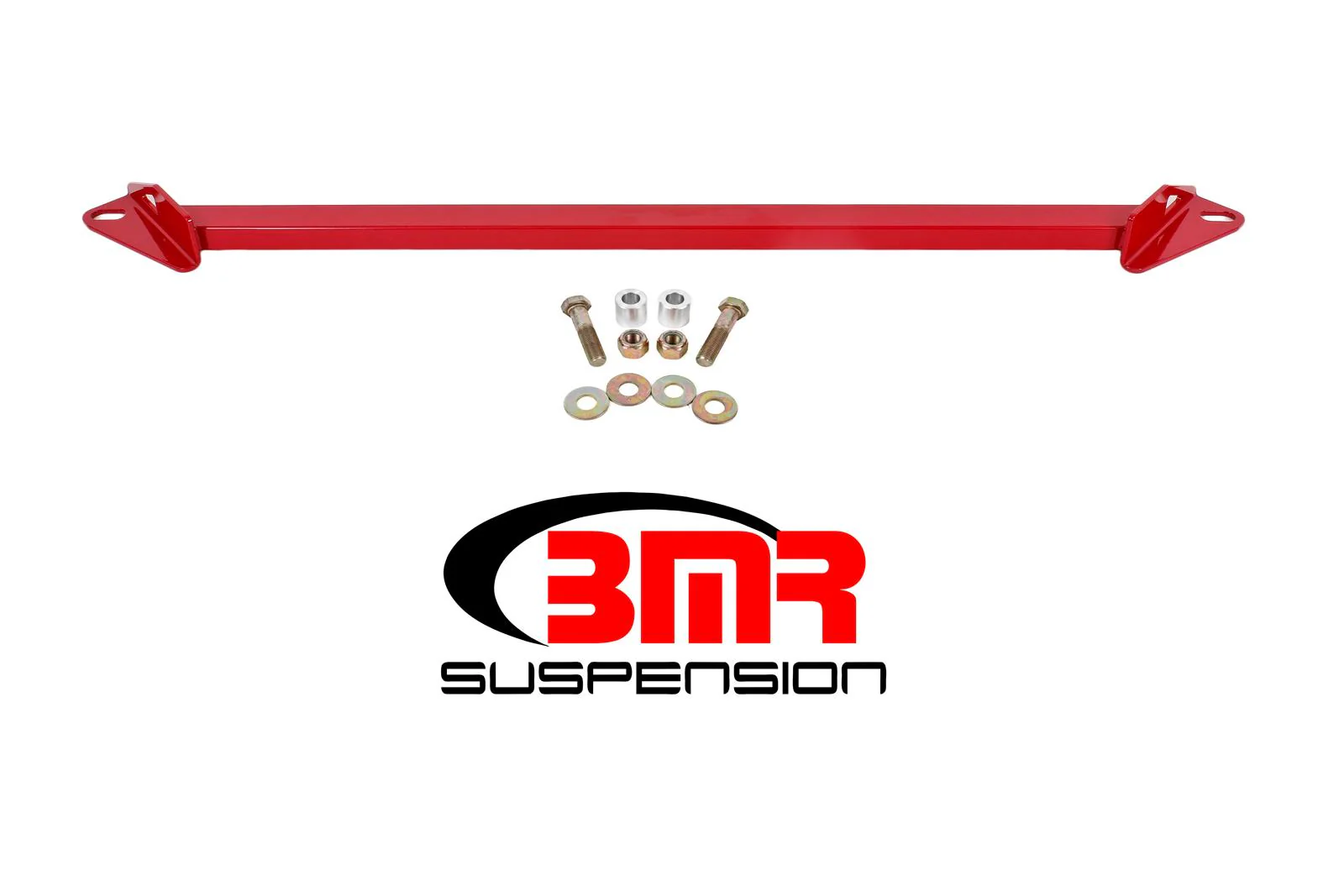

• Manufactured from heavy-duty square steel tubing and CNC-formed 3/16-inch plate steel
• CNC-machined billet aluminium spacers
• Greatly reduces K-member deflection
• Uses factory boltholes and hardware
• Works with stock and aftermarket headers and exhaust systems
• No change in NVH (Noise, Vibration and Harshness)
• Durable powder coat finish
• Available in black hammertone and red
• Designed and built in the USA

Installation:

Installation time is less than 1 hour.
This brace is designed to fit with both stock and aftermarket headers and exhaust systems.

Vehicle Application(s):

• Ford Mustang S550 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
