ROUSH has developed this industry-leading calibrated supercharger system. Boosting performance to 650 horsepower for the all-new 2015-2017 Ford F-150 5.0L V8!

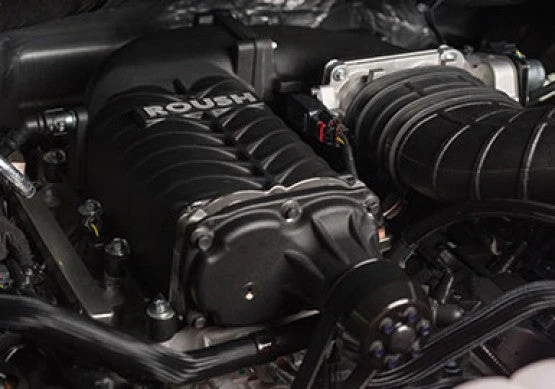

The ROUSH R2300 TVS supercharger is a roots-type positive displacement supercharger that features twin four-lobe rotors that are twisted 160-degrees. By comparison, the original Eaton supercharger rotating assembly featured three lobes twisted 60-degrees.

The fourth lobe combined with the added twist provides a long list of benefits including greatly enhanced thermal efficiency, higher volumetric capacity, higher operating speeds, a smoother, more efficient flow of air into the engine, and improved noise and vibration characteristics.

Unlike turbo-charging, the ROUSH R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire power band.

Product highlights for the 2015-2017 ROUSH F-150 5.0L V8 Supercharger Phase 2 - 650 HP Calibrated:

• Most highly-engineered supercharger system for the 2015-2017 F-150 on the market
• 650 hp @ 6500 rpm and 585 lb-ft @ 4000 rpm
• +265 hp (+69%) and +198 lb-ft (51%) increase over stock (385 hp/387 lb-ft)
• R2300 Supercharger featuring new TVS Technology. The new Twin Vortices Series features new four-lobe rotors with greatly enhanced thermal efficiency, enabling greater volumetric capacity at higher revolutions per minute (RPM)

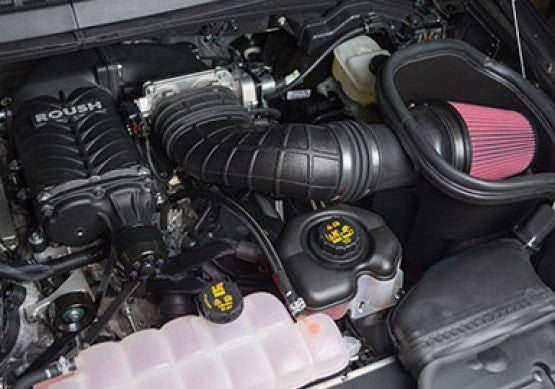

• All-new, high-capacity, low-restriction air filter and complete induction system
• Large aluminium intercooler, low-temperature radiator with moulded air duct, and high-capacity degas bottle
• ROUSH-designed high-flow fuel injectors
• Large 60 mm dual-bore throttle body
• Custom designed, heavy-duty first sheave FEAD system
• Higher boost 75 mm supercharger pulley
• ROUSH Phase 2 calibration file delivered with exclusive ROUSH Diagnostic Tool (RDT)

Vehicle Application

Model	Engine	Years
F-150	5.0L	2015-17

Installation

Difficulty	Advanced
Time	14 hours
Tools	Garage Tools
Instructional URL	Download Instruction Manual
